RG1602A-19 Display 16x2 I2C

The I2C is a type of serial bus , which uses two bidirectional lines, called SDA (Serial Data Line) and SCL (Serial Clock Line). Both must be connected via pulled-up resistors. The usage voltages are standard as 5V and 3.3V.

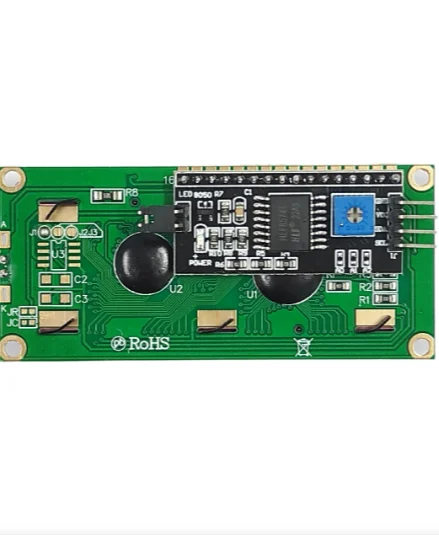

If you already have the I2C adapter soldered onto the board, the wiring is quite easy. You should usually have only four pins to hook up. VCC and GND of course. The LCD display works with 5 Volts. So we go for the 5V Pin.

Display Format: 16 (characters) ×2 (line)
                          * IC: Aip31068  Aip31065

Drive Voltage: 5.0V

Driving Method: 1/16 Duty, 1/4 Bias, VO 4.7V

Operating Temperature: -20-70℃

Storage Temperature: -30-80℃

Viewing Direction : 6 0’clock

Backlight: LED (WHITE) IF= 20MA

Background Color:
